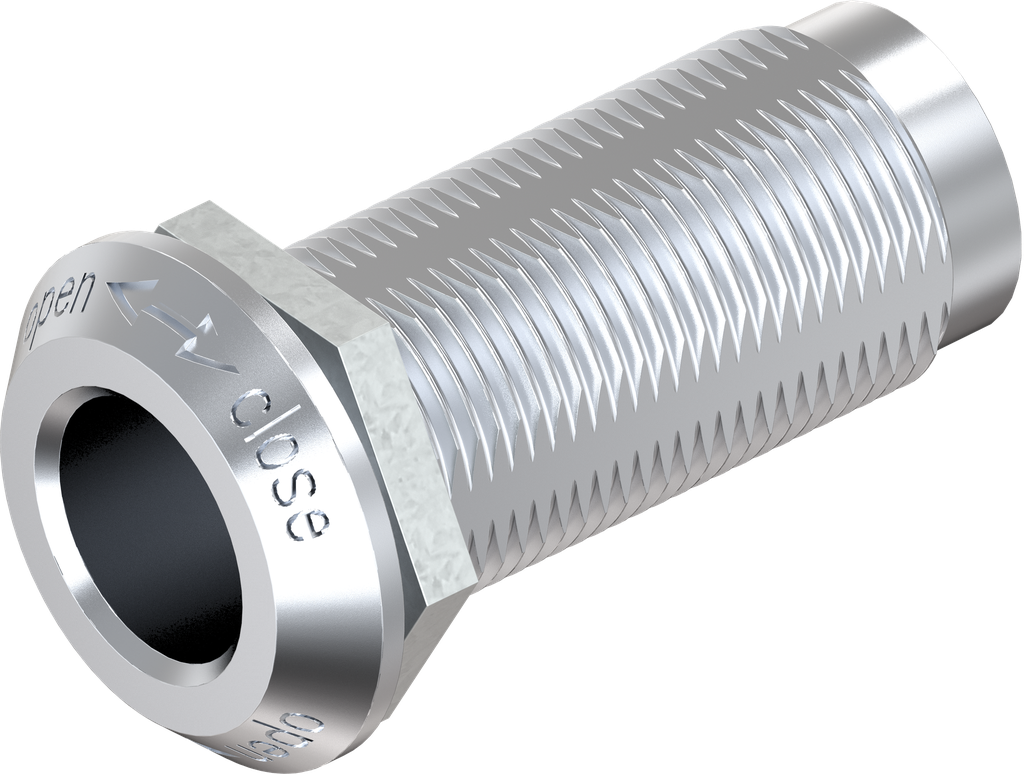

Housing for stepped cam, Zinc die chrome-plated
Adapter, Zinc die raw
Product information:
Housing with 270° stopper
Key features:
This product is a modular component of a UL-certified closure.
Internal Reference:
1000-U160
Product Type:
Housing
Program:
1000
Catalog sheet:
1B-240
Material of the module :
Zinc die
Surface of the module:
chrome-plated
Number of Possible Locking Points:
1 point
Fixing type of housing :
nut fixing
Mounting Positions :
Inside the sealing
Housing Head Shape:
Round
Housing Head Size:
32 x 6 mm
GH Mass:
50 mm
Suitable for door thickness from:
1.50 mm
Suitable for door thicknesses up to:
40 mm
Locking set:
Insert
Door Version :
Left,Right
Locking components:
Stepped cam
Quarter turn types:
Quarter turn with simple insert
No Specifications
