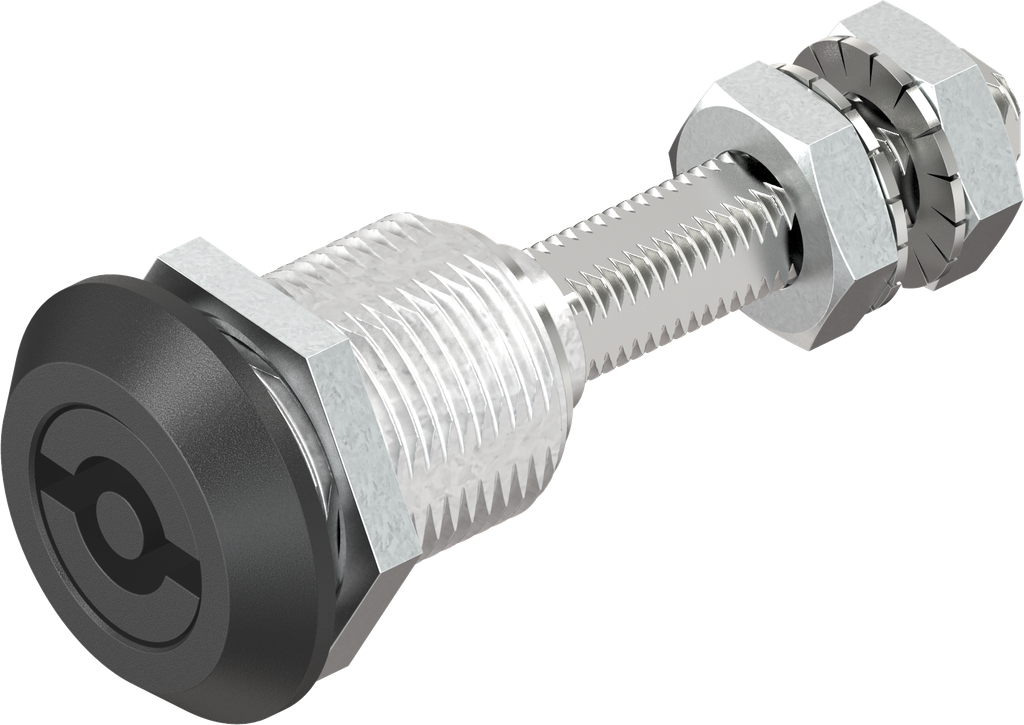

Compression latch with adjustable cam height, double bit 5, Zinc die and steel black powder-coated; 1000-SU752
with nut
Product information:
The compression latch is designed to be vibration-proof as such.
Depending on the installation location and operational conditions, specific checks are necessary and/or supplementary measures of fastening required.
Internal Reference:
1000-SU752
Program:
1000
Catalog sheet:
1B-222
Material of the module :
Zinc die and steel
Surface of the module:
black powder-coated
Number of Possible Locking Points:
False
Fixing type of housing :
False
Type of actuation:
Double bit 5
Mounting Positions :
False
Housing Head Shape:
Round
Housing Head Size:
32 x 6 mm
Foamed gasket:
Yes
GH Mass:
31 mm
Compression Value :
6 mm
Suitable for door thickness from:
1.50 mm
Suitable for door thicknesses up to:
20 mm
Locking set:
False
Door Version :
False
Locking components:
False
Quarter turn types:
False
