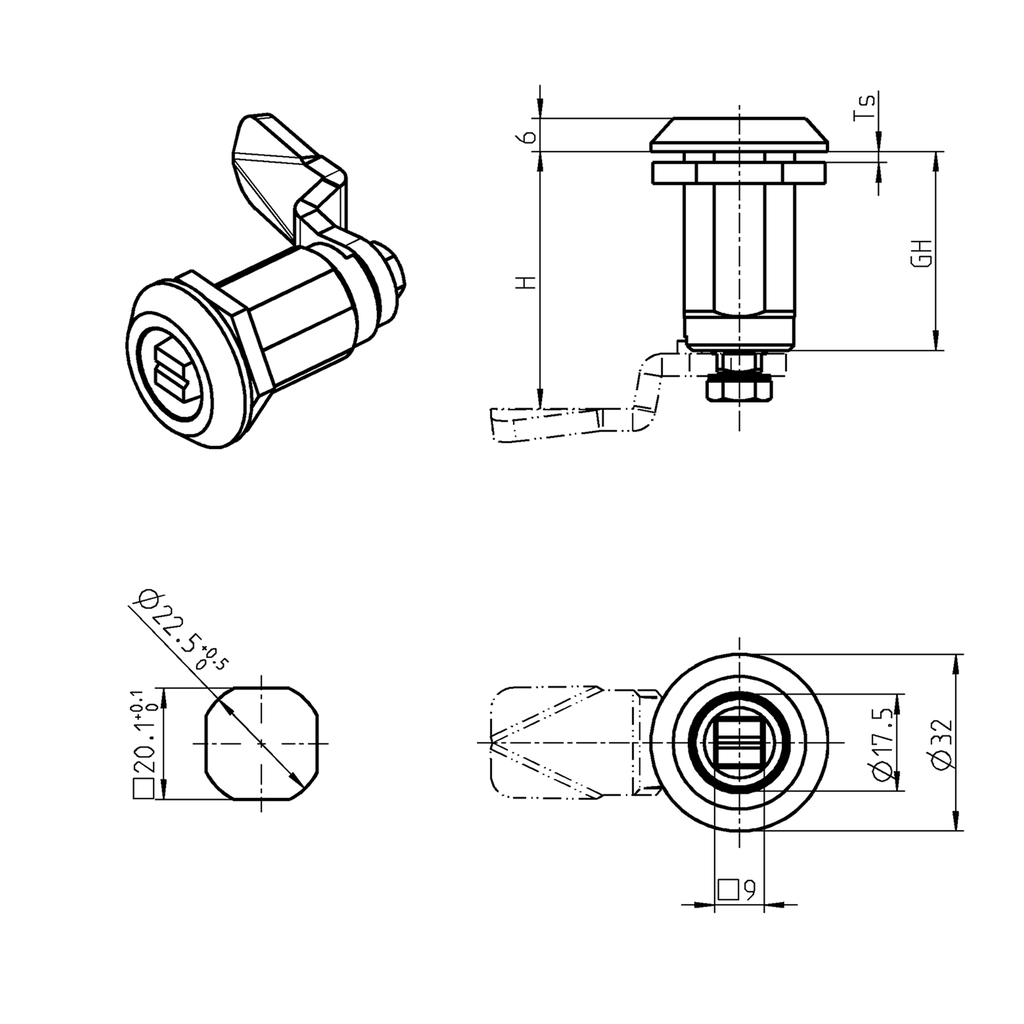

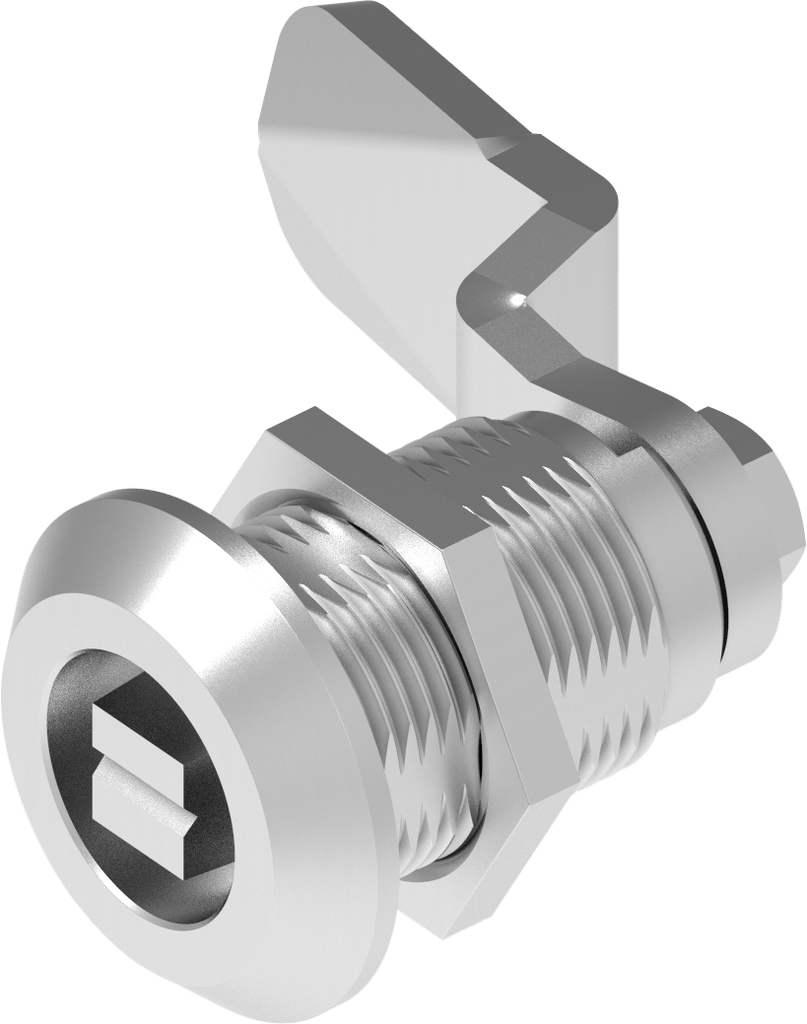

Quarter turn version railway in conformity with RIC, Stainless steel AISI 303

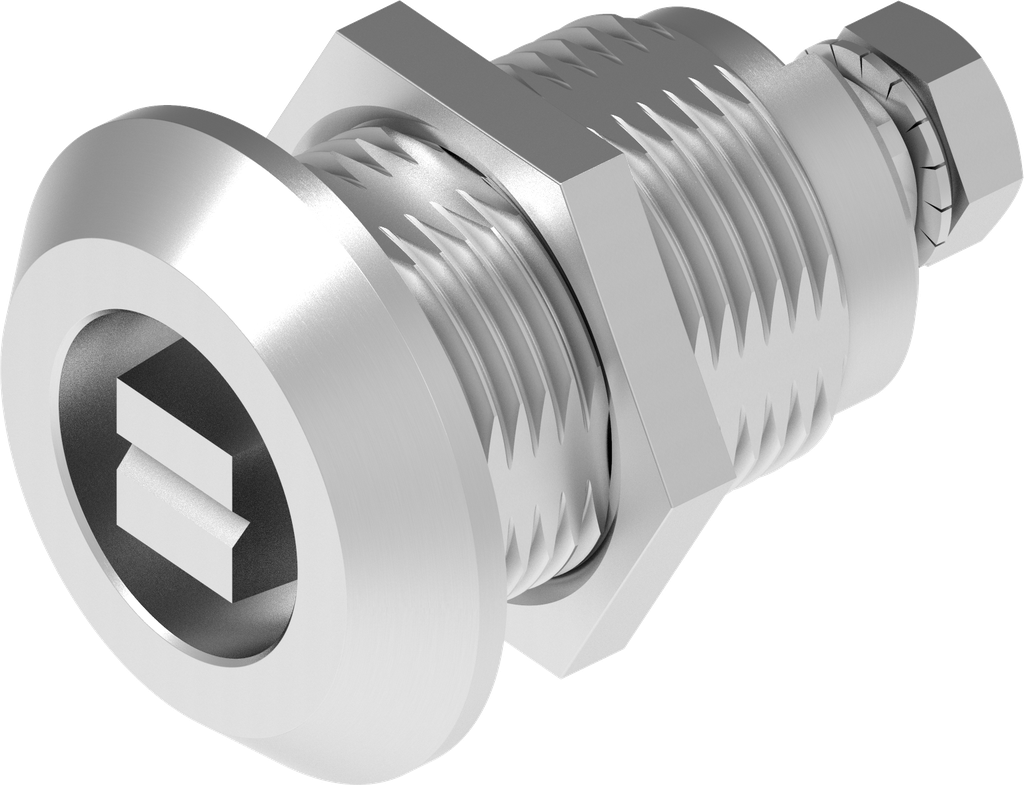

Quarter turn version railway in conformity with RIC, Stainless steel AISI 303; 1000-SU543-PF
with stainless steel nut
Internal Reference:
1000-SU543-PF
Product Type:
Quarter turn
Program:
1000
Material of the module :
Stainless steel AISI 303
Number of Possible Locking Points:
1 point, 2 points, 3 point
Fixing type of housing :
nut fixing
Type of actuation:
Square 9 with V-slot, railway version
Mounting Positions :
Inside the sealing
Housing Head Shape:
Round
Housing Head Size:
32 x 6 mm
GH Mass:
30 mm
Suitable for door thickness from:
1.50 mm
Suitable for door thicknesses up to:
20 mm
Locking set:
Insert
Door Version :
Left,Right
Locking components:
Cam
Quarter turn types:
Quarter turn with simple insert
