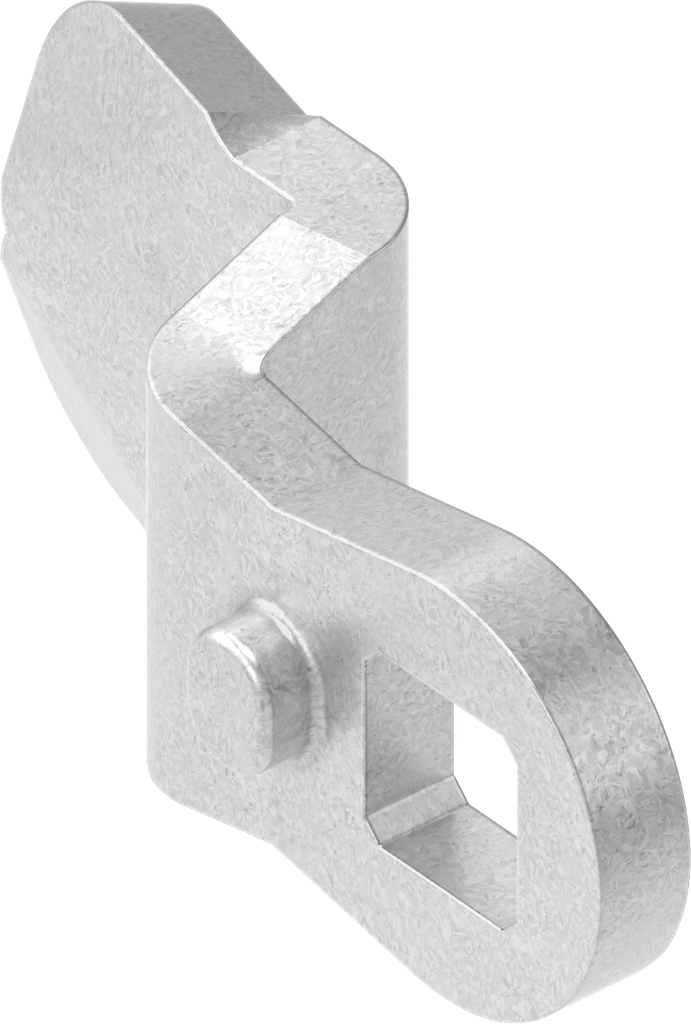

Cam, Steel zinc-plated

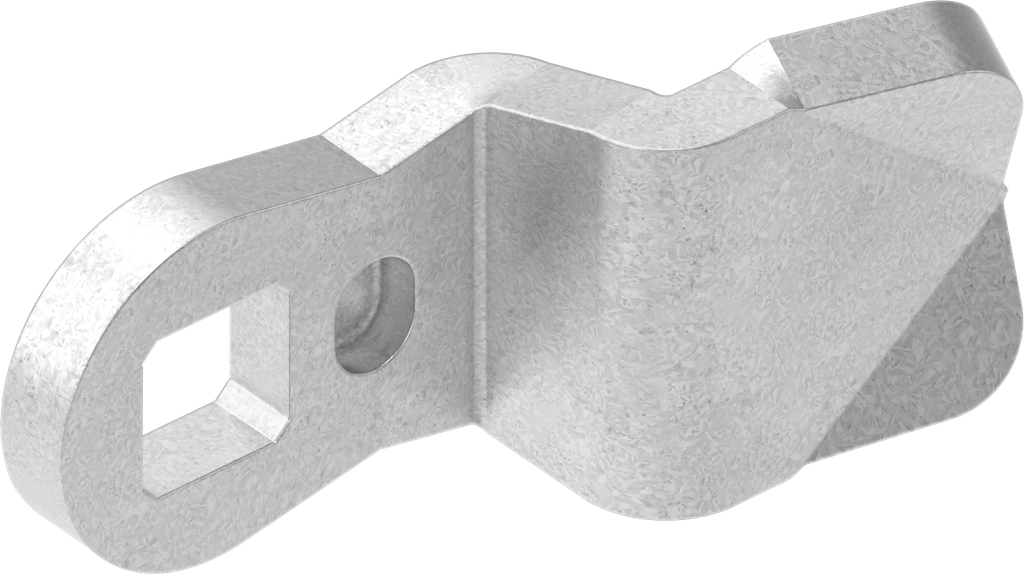

Hooked cam, left version, Steel zinc-plated
Internal Reference:
1000-5164
Product Type:
Cam
Material:
Steel
Program:
1000
Surface:
zinc-plated
Catalog sheet:
3YA-840
Dimension A:
33 mm
Number of Possible Locking Points:
1 point, 3 point
Mounting Positions :
Inside the sealing
Compression Value :
2 mm

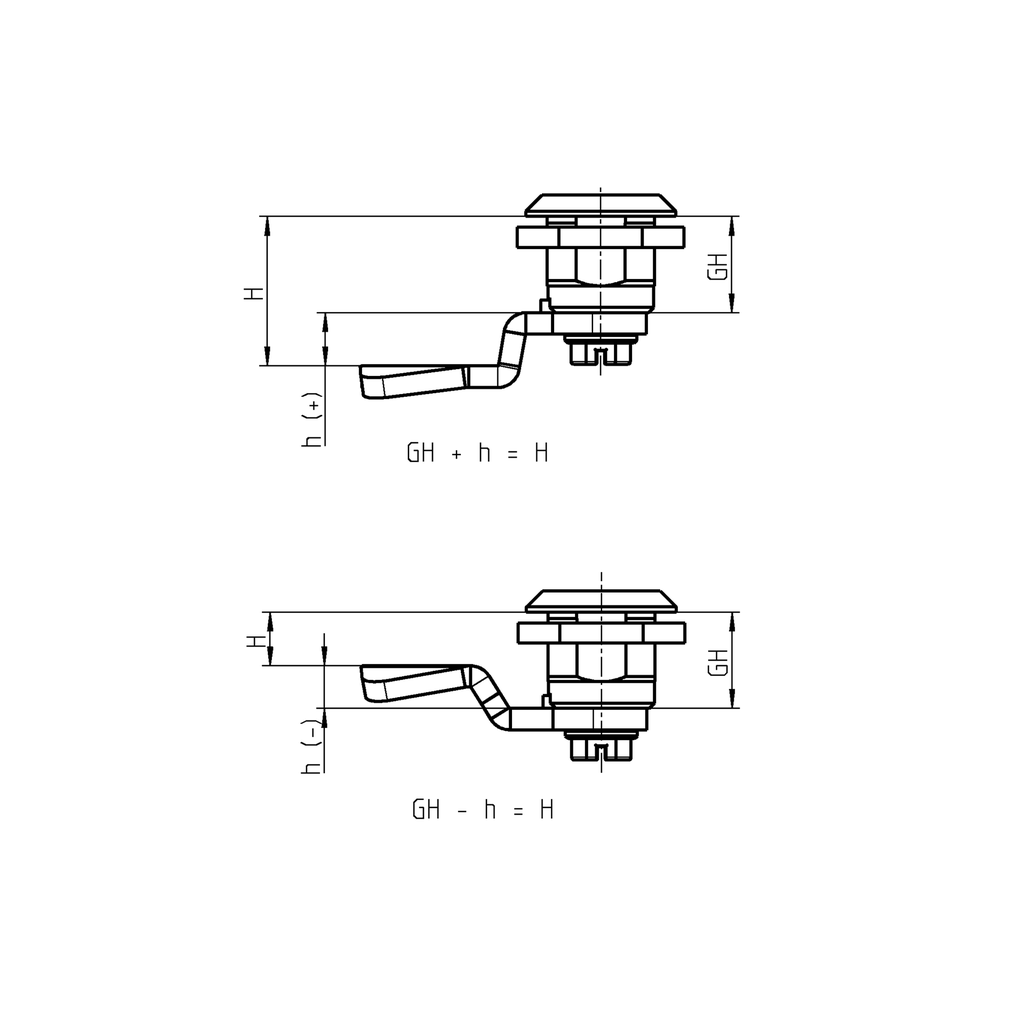

Offset:
positive
offset of cam:
10 mm
Short spoon:
Yes

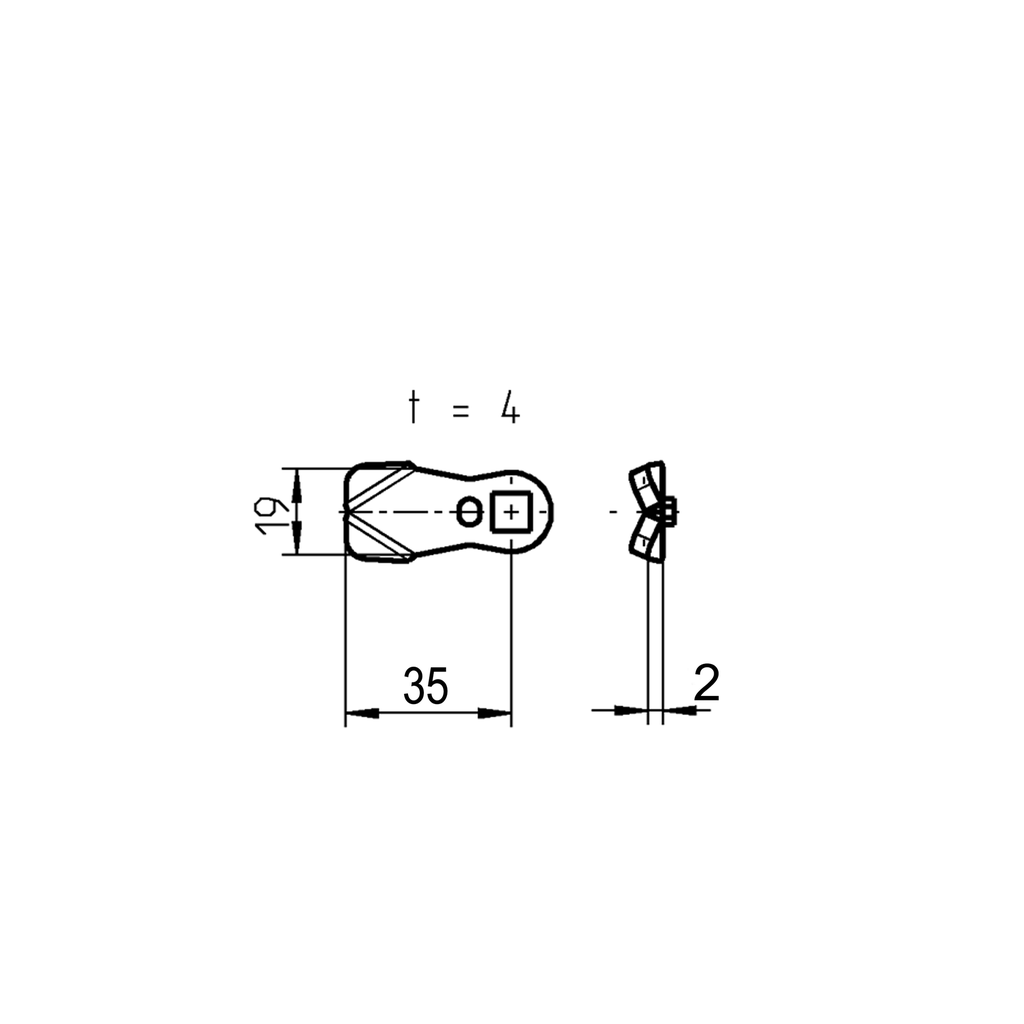

Dimension L:
35 mm
Dimension t:
4 mm
No Specifications
View All Products
Here you can find the product data sheets and CAD files of this product
