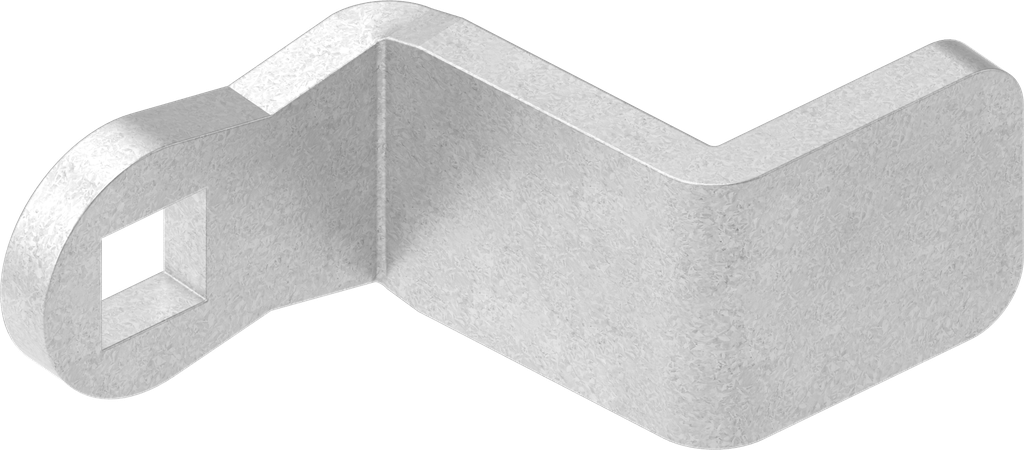

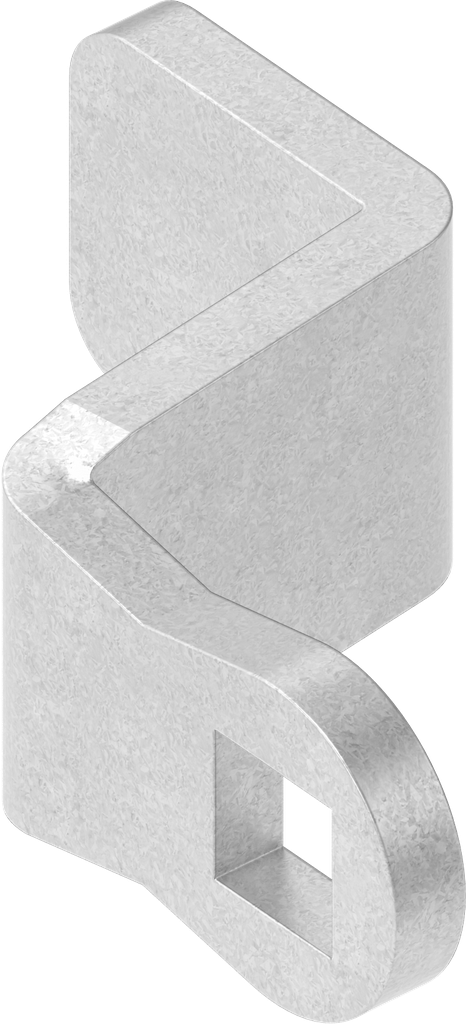

Cam without catch, Steel zinc-plated
Cam without catch, Steel zinc-plated
Akeneo Note:

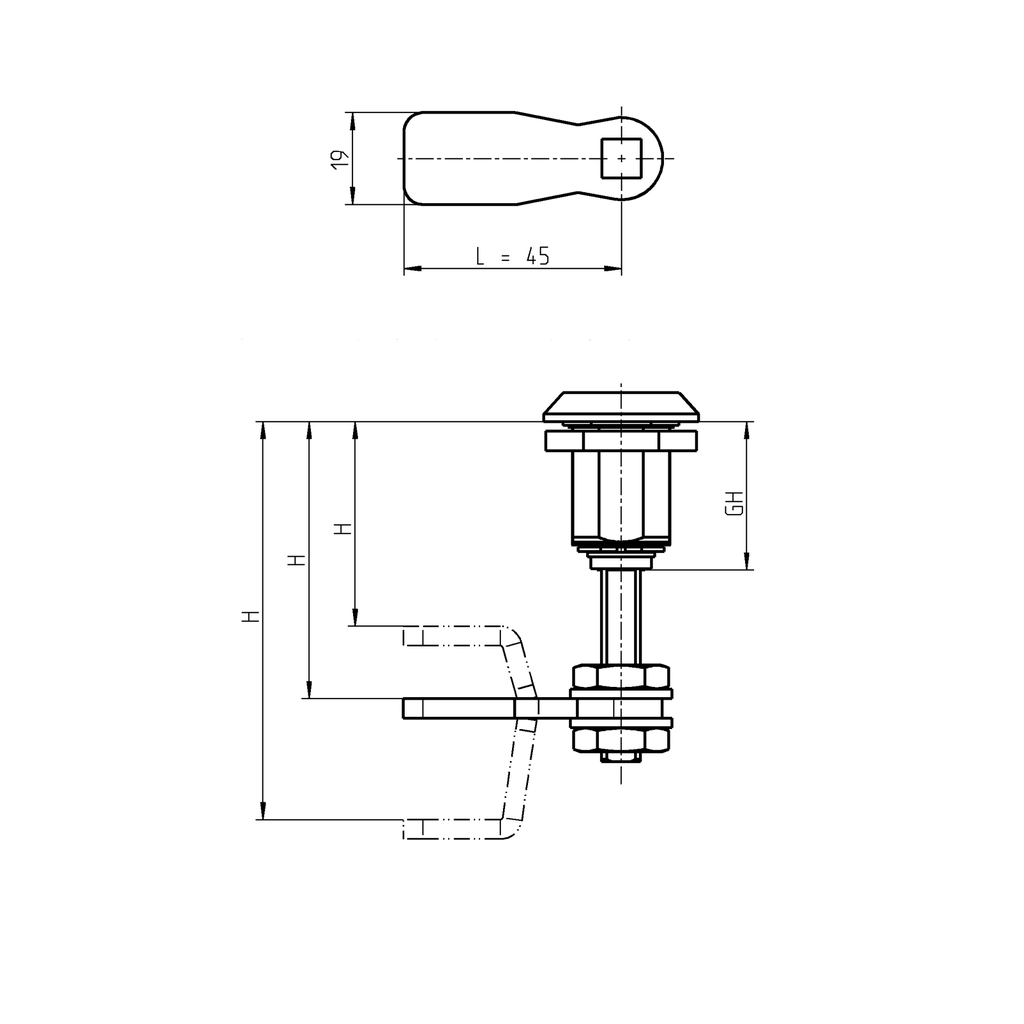

Dimension H for GH 31 = 12 - 32 mm or 64 - 84 mm
Dimension H for GH 45 = 26 - 46 mm or 78 - 98 mm
Dimension H for GH 64 = 45 - 65 or 97 - 117 mm
Internal Reference:
1000-477
Product Type:
Cam
Material:
Steel
Program:
1000
Surface:
zinc-plated
Catalog sheet:
1C-137
Number of Possible Locking Points:
1 point, 3 point
Mounting Positions :
Inside the sealing
Offset:
positive and negative possible
offset of cam:
26 mm
Dimension L:
45 mm
Dimension t:
4 mm
No Specifications
