Anti-rotation device, Zinc die zinc-plated
Anti-rotation device, Zinc die zinc-plated
Cam without catch, Steel zinc-plated
Cam without catch, Steel zinc-plated

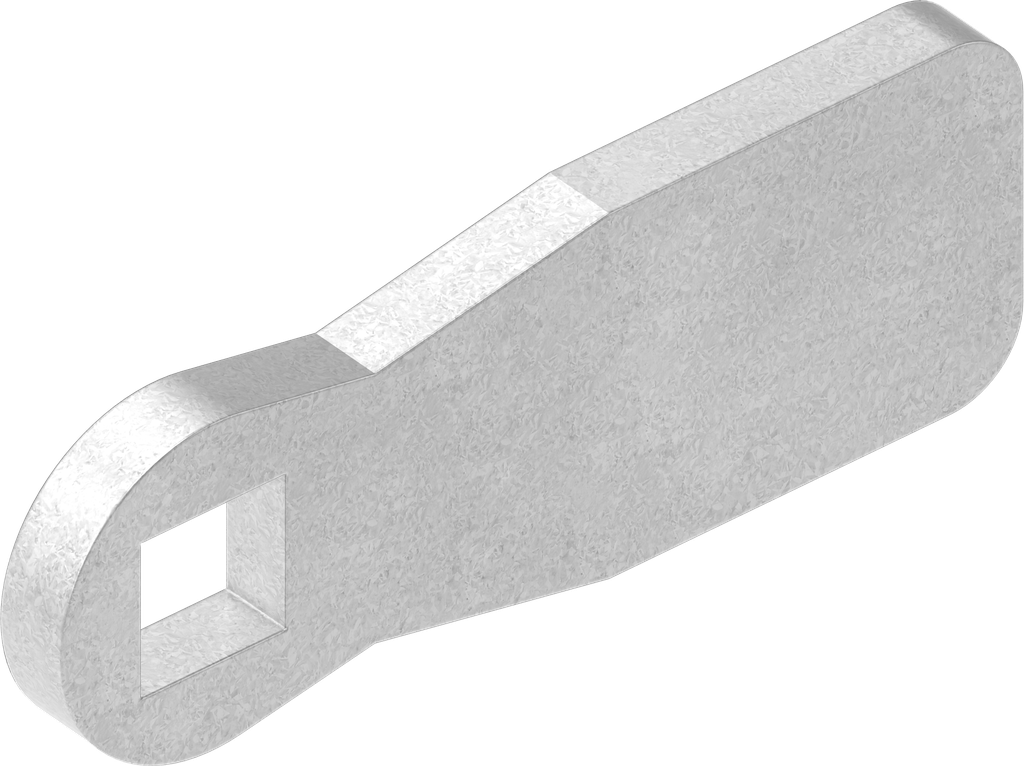

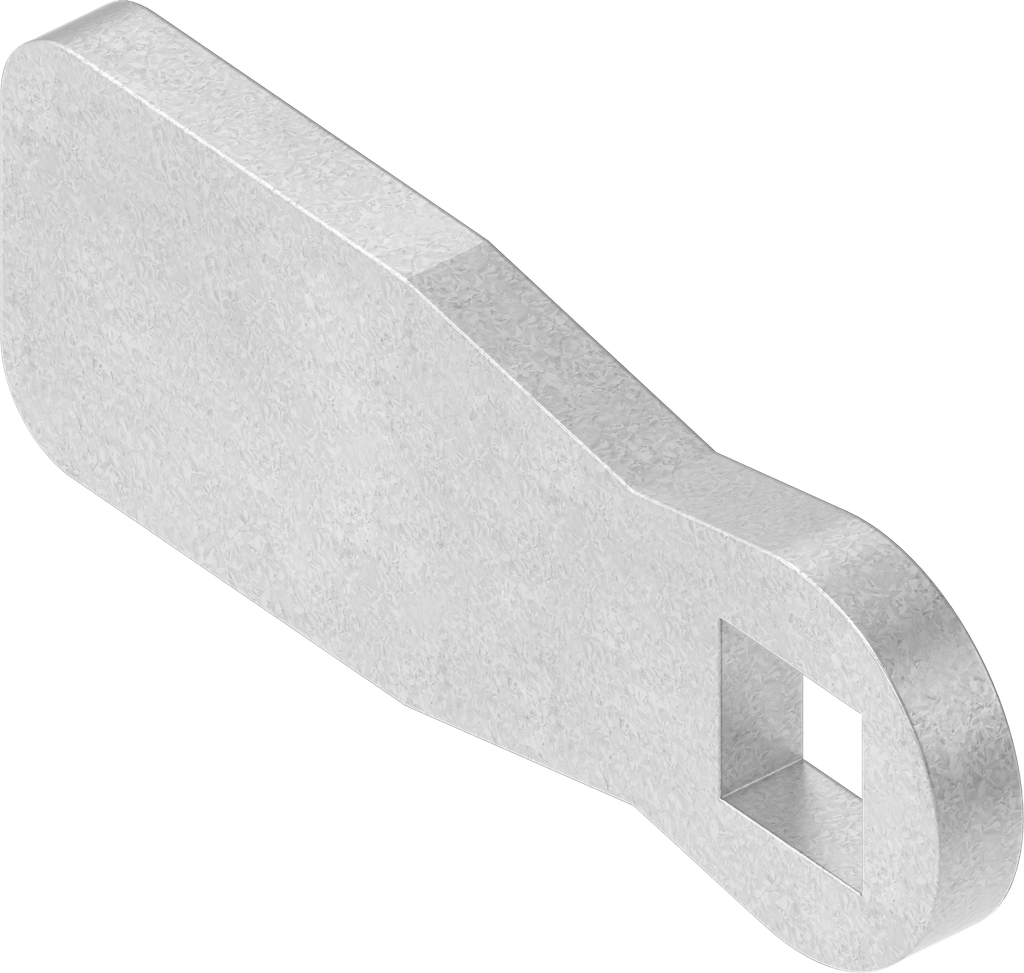

Cam without catch, Steel zinc-plated; 1000-476

https://20241023-uat.emka.opaas.sh/products/1000-476 https://20241023-uat.emka.opaas.sh/web/image/product.template/59506/image_1920?unique=54585a8

Offset h = 0 mm

    This combination does not exist.

    Inside the sealing
    Contact Us

    Akeneo Note:

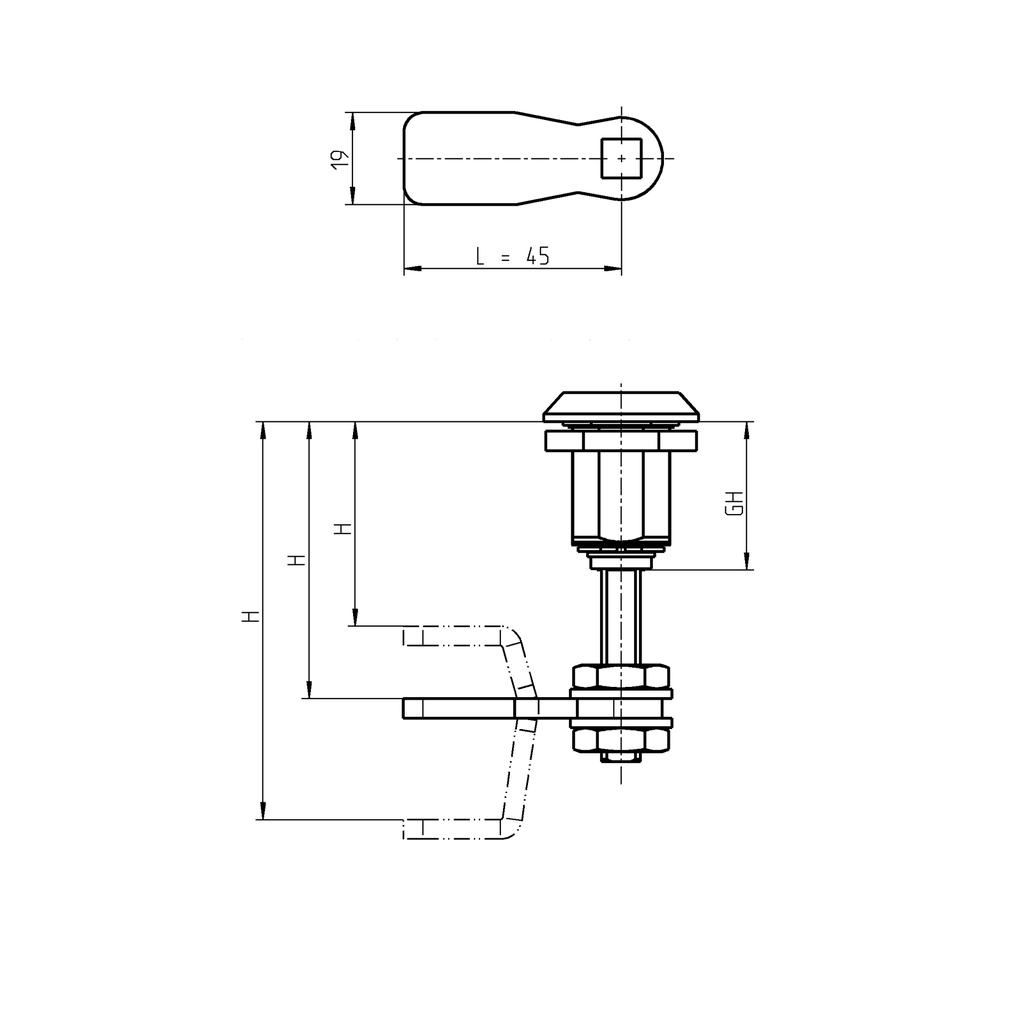

    Dimension H for GH 31 = 38 - 58 mm
    Dimension H for GH 45 = 52 - 72 mm
    Dimension H for GH 64 = 71 - 91 mm
    Internal Reference: 1000-476
    Product Type: Cam
    Material: Steel
    Program: 1000
    Surface: zinc-plated
    Catalog sheet: 1C-137
    Number of Possible Locking Points: 1 point, 3 point
    Mounting Positions : Inside the sealing
    Offset: straight
    offset of cam: 0 mm
    Dimension L: 45 mm
    Dimension t: 4 mm
    No Specifications
    View All Products
    Quarter turn
    Here you can find the product data sheets and CAD files of this product
    Main catalogue | 1C-137
    Product data sheet
    CAD file | 1000-476_igs
    CAD file | 1000-476_stp
