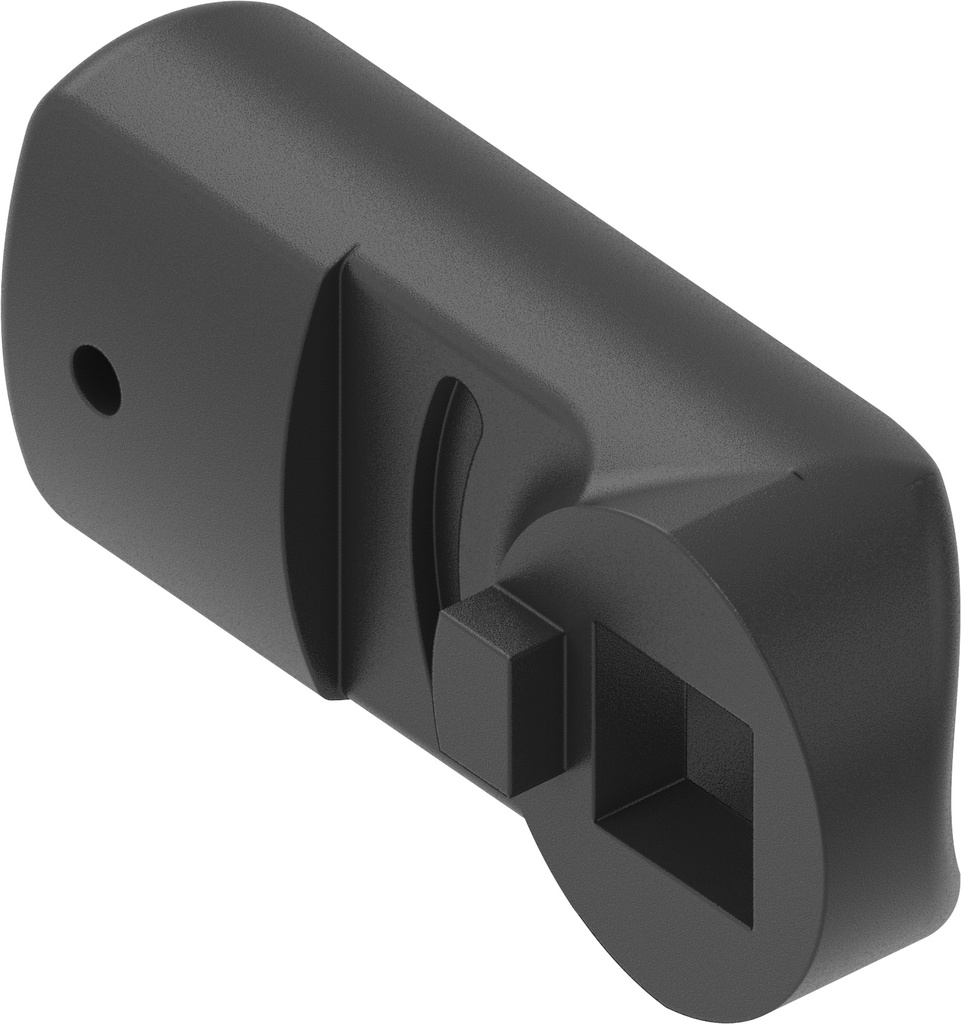

Cam, Polyamide GF black; 1000-386-18

https://20241023-uat.emka.opaas.sh/products/1000-386-18 https://20241023-uat.emka.opaas.sh/web/image/product.template/59426/image_1920?unique=c00a478

Offset h = 0 mm

    This combination does not exist.

    Inside the sealing
    Contact Us
    Internal Reference: 1000-386-18
    Product Type: Cam
    Material: Polyamide GF
    Program: 1000
    Surface: black
    Catalog sheet: 1C-120

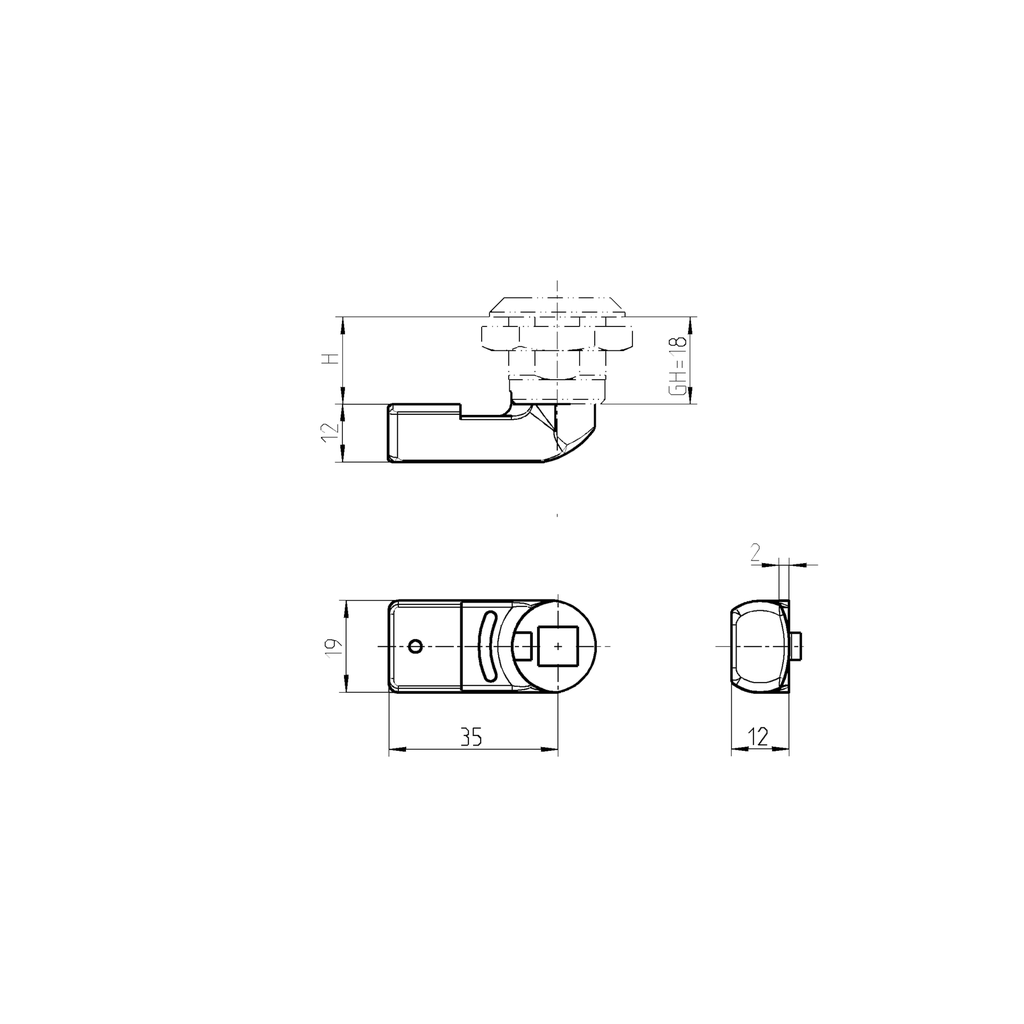

    Dimension A: 23 mm
    Number of Possible Locking Points: 1 point
    Mounting Positions : Inside the sealing
    Compression Value : 2 mm
    Offset: straight
    offset of cam: 0 mm
    Dimension L: 35 mm
    Spoon: Yes
    No Specifications
    View All Products
    Housing
    Ramp
    Assembly
    Quarter turn
    Adapter
    Bearing bush
    Other latch
    Swinghandle, Lifthandle
    Fixing material for swinghandle
    Here you can find the product data sheets and CAD files of this product
    Main catalogue | 1B-160
    Product data sheet
    CAD file | 1000-386-18_igs
    CAD file | 1000-386-18_stp
