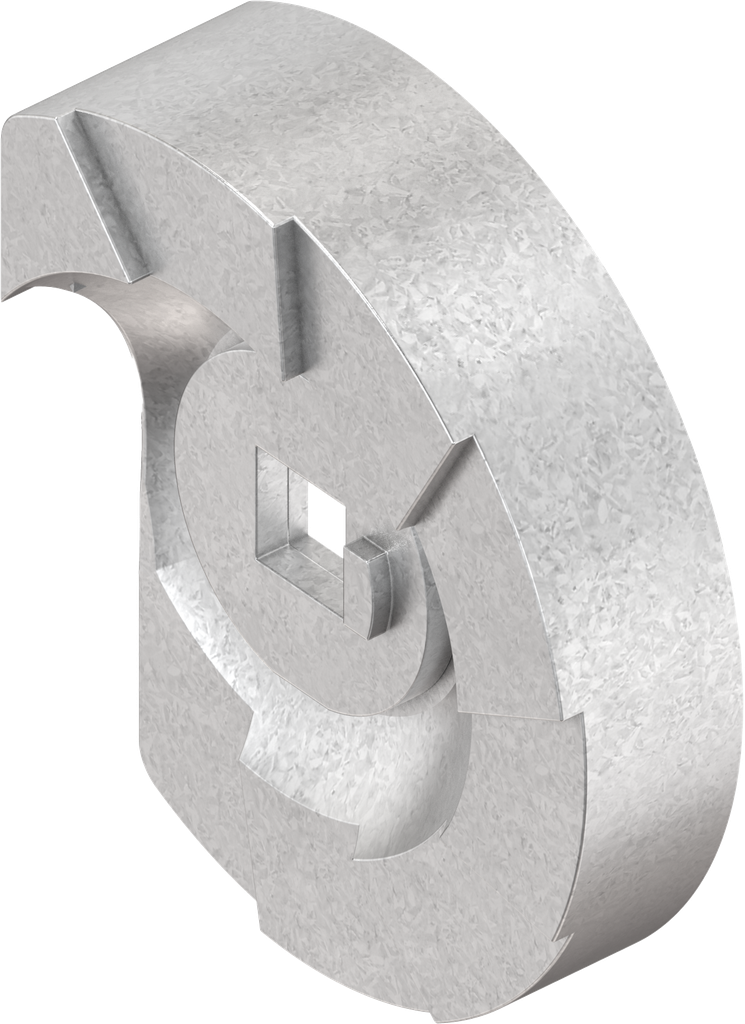

Stepped cam with catch, Steel zinc-plated; 1000-244

https://20241023-uat.emka.opaas.sh/products/1000-244 https://20241023-uat.emka.opaas.sh/web/image/product.template/59291/image_1920?unique=4564128

with high rim


    This combination does not exist.

    Inside the sealing


    Akeneo Note:

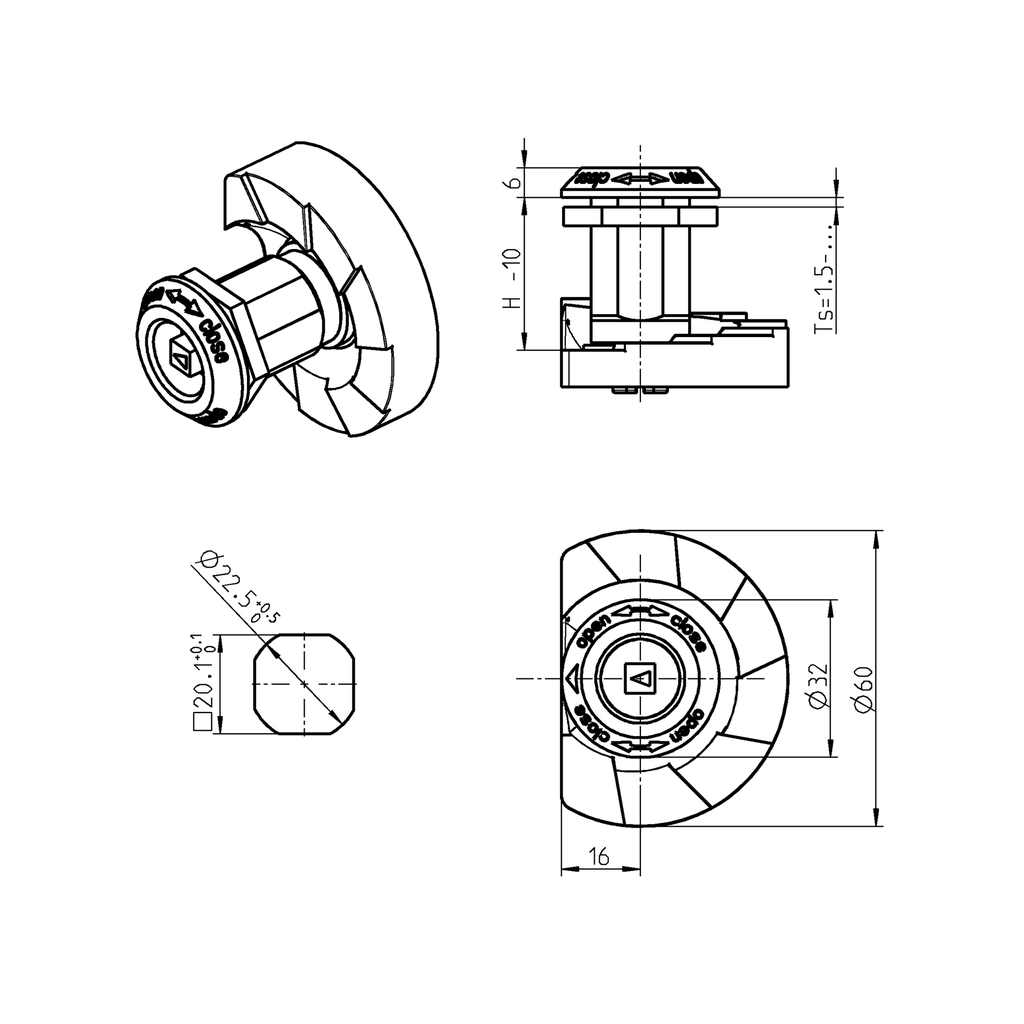

    • GH 18 = H 19
    • GH 30 = H 31
    • GH 36 = H 37
    • GH 40 = H 41
    • GH 50 = H 51
    Internal Reference: 1000-244
    Product Type: Cam
    Material: Steel
    Program: 1000
    Surface: zinc-plated
    Catalog sheet: 1B-240
    Number of Possible Locking Points: 1 point
    Mounting Positions : Inside the sealing
    Compression Value : 10 mm
    No Specifications
    View All Products
    Housing
    Here you can find the product data sheets and CAD files of this product
    Main catalogue | 1B-240
    Product data sheet
    CAD file | 1000-244_igs
    CAD file | 1000-244_stp
