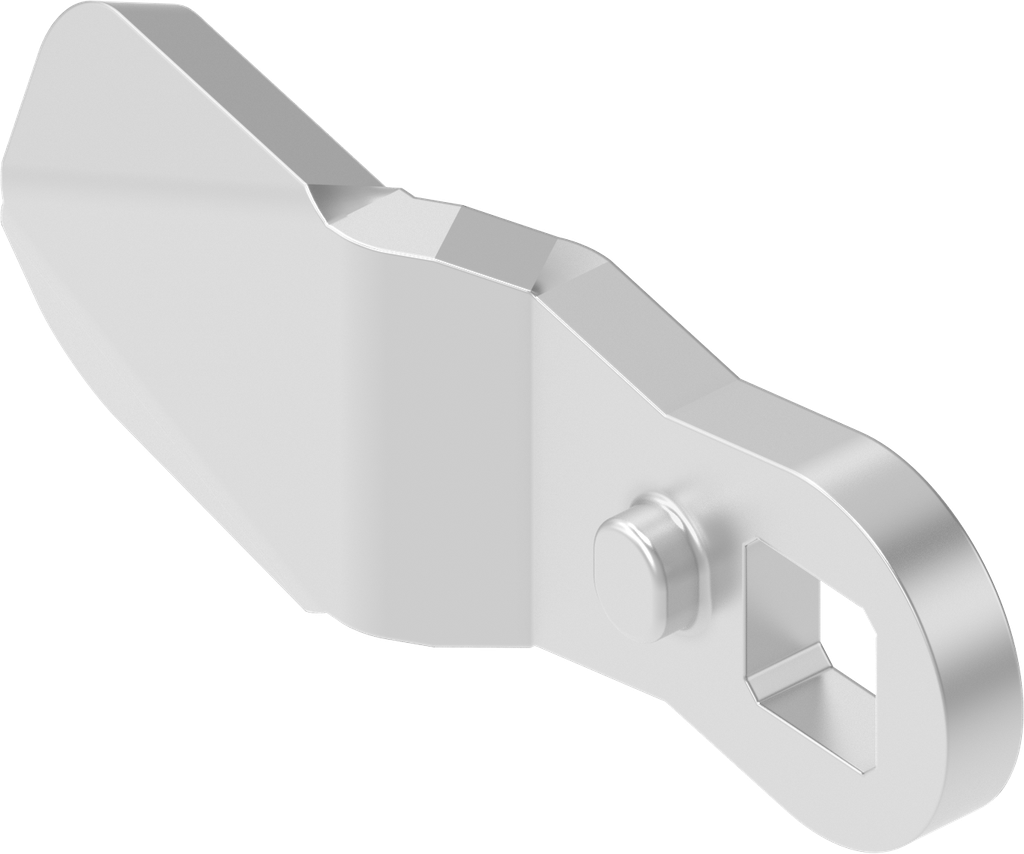

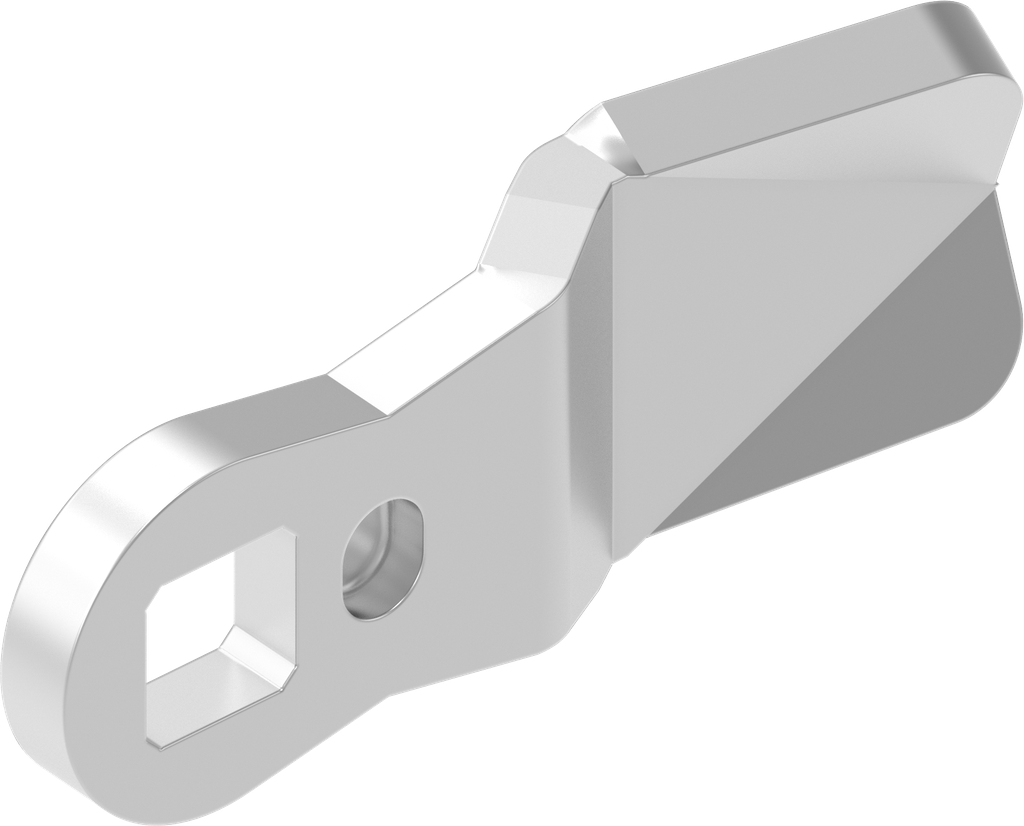

Cam, Stainless steel AISI 304; 1000-225

https://20241023-uat.emka.opaas.sh/products/1000-225 https://20241023-uat.emka.opaas.sh/web/image/product.template/59283/image_1920?unique=54585a8

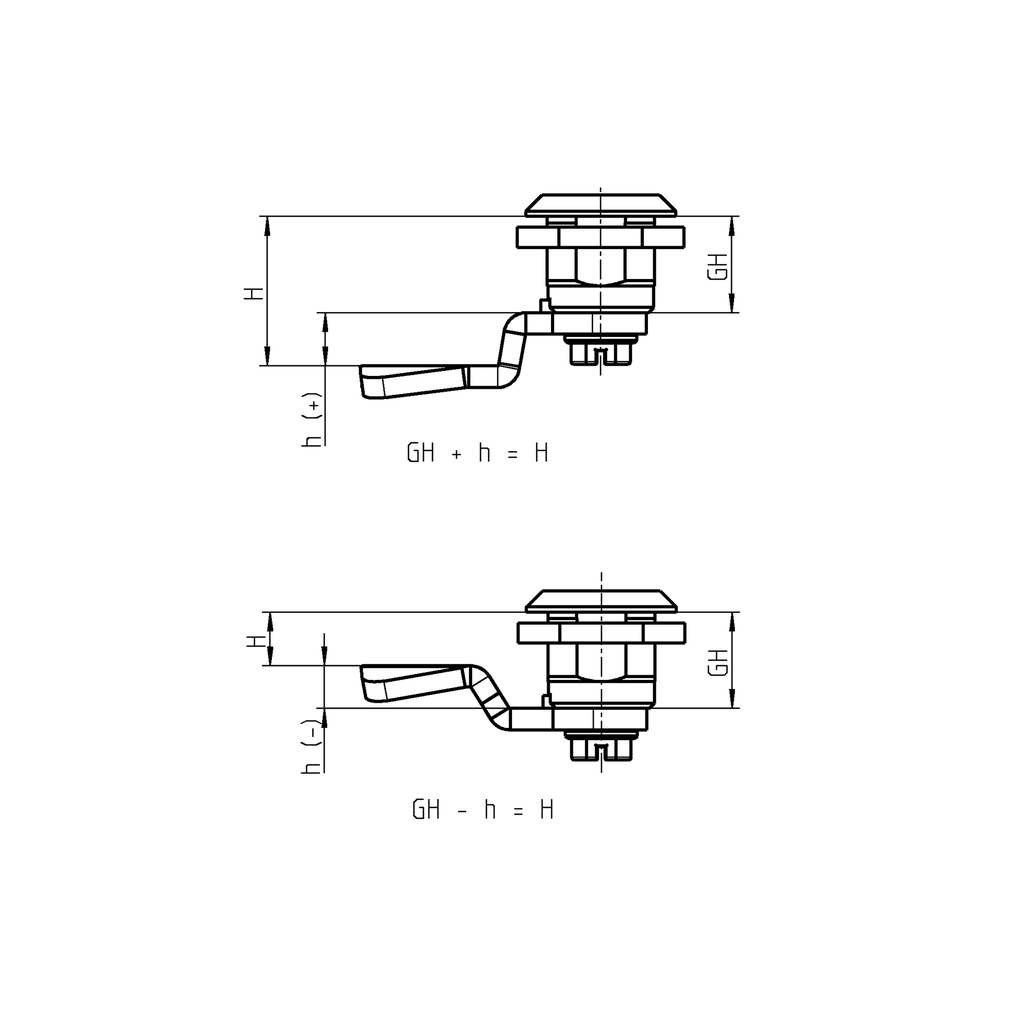

Offset h = -4 mm

    This combination does not exist.

    Inside the sealing
    Contact Us
    Internal Reference: 1000-225
    Product Type: Cam
    Material: Stainless steel AISI 304
    Program: 1000
    Catalog sheet: 3ZD-240
    Number of Possible Locking Points: 1 point, 3 point
    Mounting Positions : Inside the sealing
    Compression Value : 3 mm
    Offset: negative
    offset of cam: -4 mm

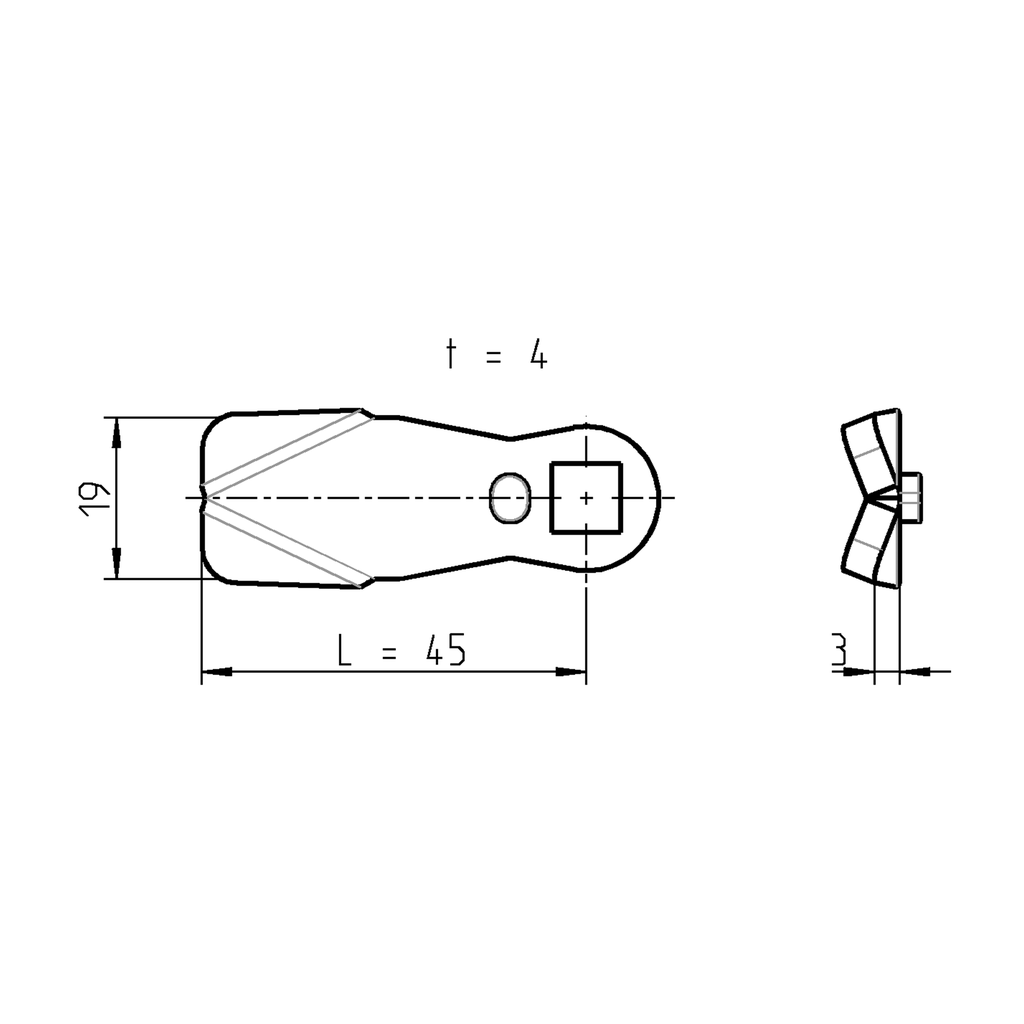

    Dimension L: 45 mm
    Spoon: Yes
    Dimension t: 4 mm
    No Specifications
    View All Products
    Housing
    Ramp
    Assembly
    Quarter turn
    Quarter turn accessories
    Rod control
    Adapter
    Locking point
    Bearing bush
    Other latch
    Swinghandle, Lifthandle
    Fixing material for swinghandle
    Here you can find the product data sheets and CAD files of this product
    Main catalogue | 1C-120
    Product data sheet
    CAD file | 1000-225_igs
    CAD file | 1000-225_stp
