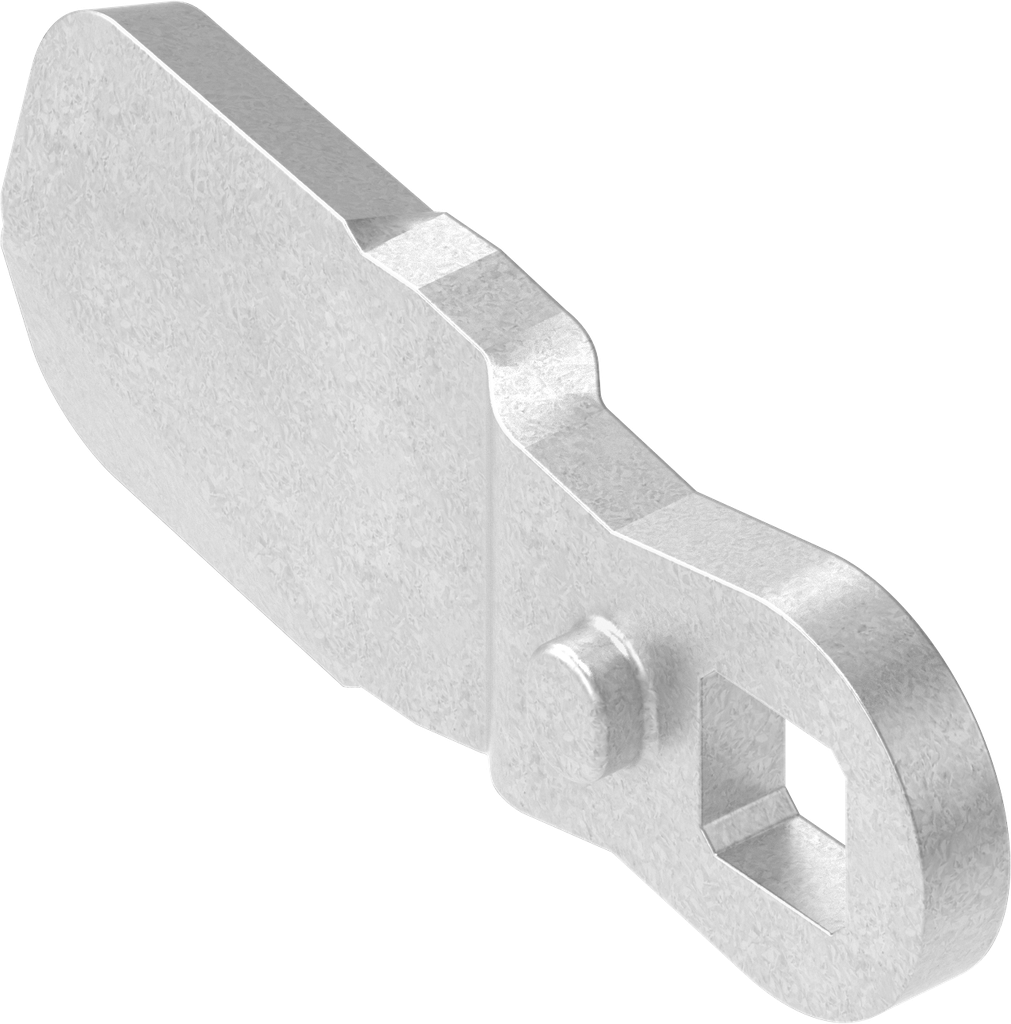

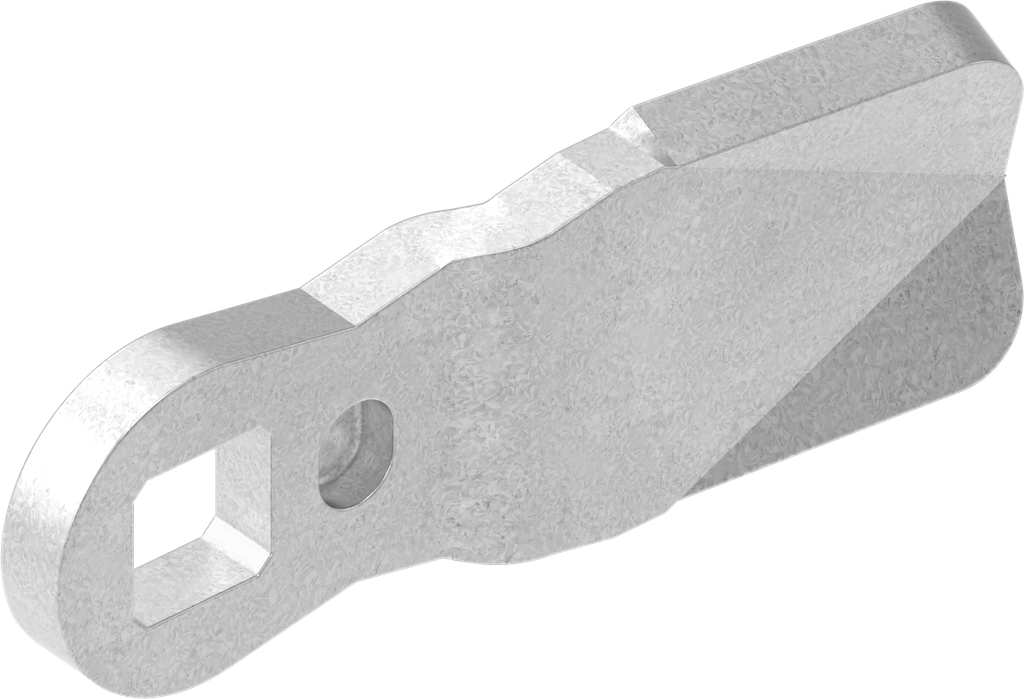

Cam, Steel zinc-plated
Cam, Steel zinc-plated
Internal Reference:
1000-16
Product Type:
Cam
Material:
Steel
Program:
1000
Surface:
zinc-plated
Catalog sheet:
3ZD-240
Dimension A:
25 mm
Number of Possible Locking Points:
1 point, 3 point
Mounting Positions :
Inside the sealing
Compression Value :
3 mm

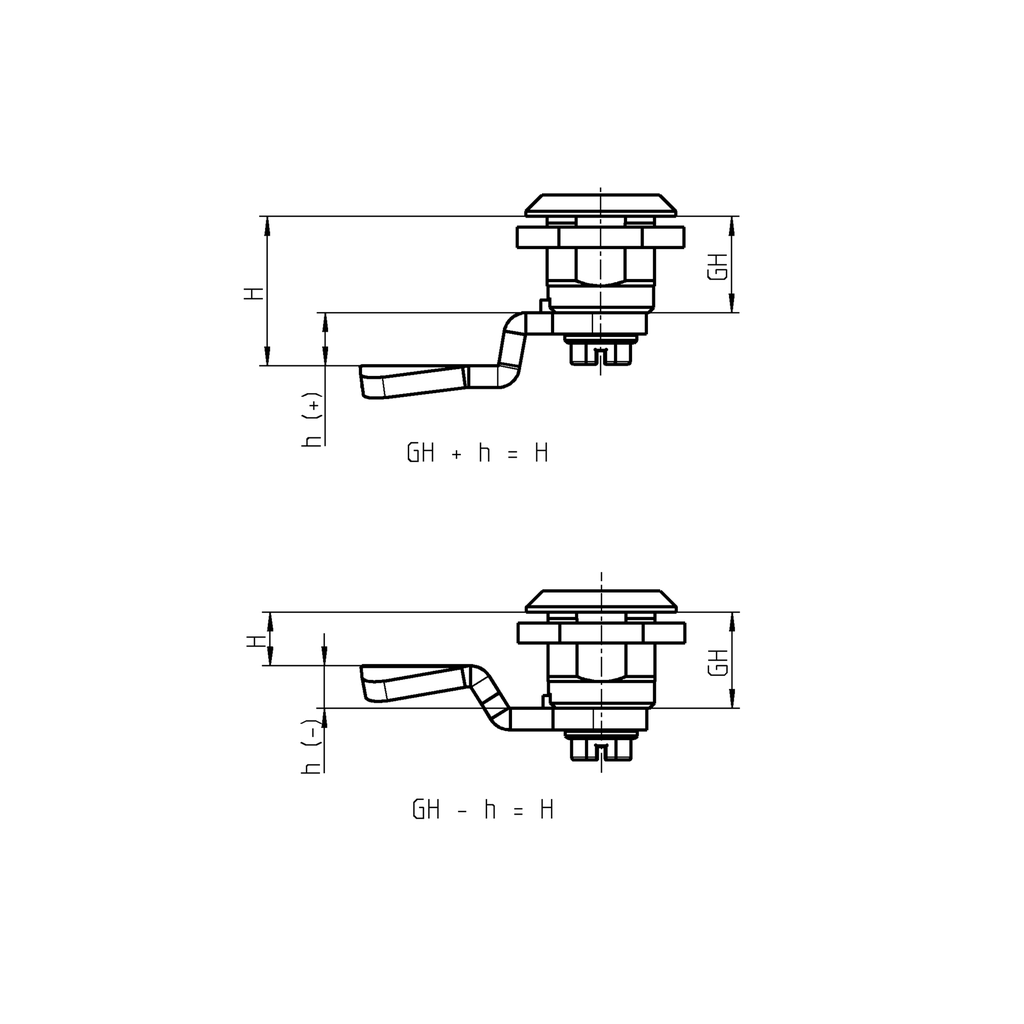

Offset:
positive
offset of cam:
2 mm

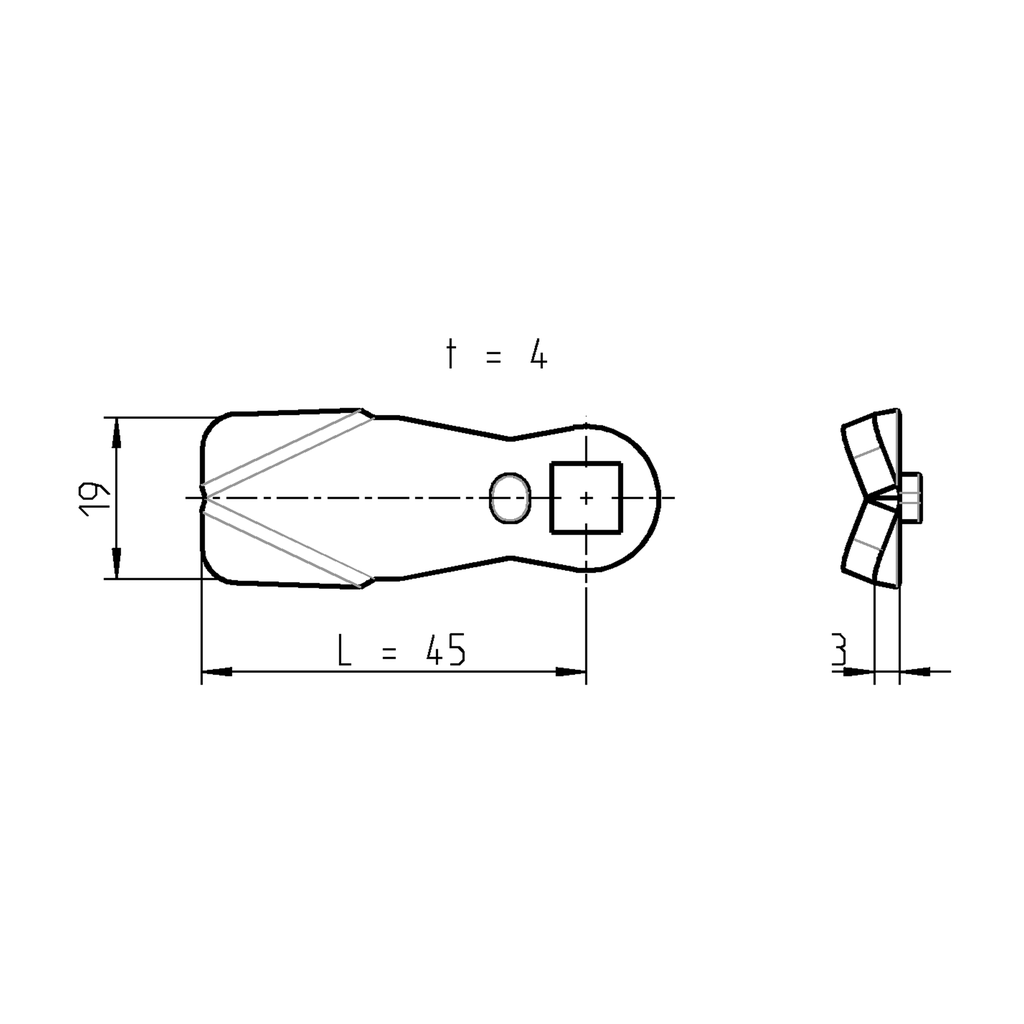

Dimension L:
45 mm
Spoon:
Yes
Dimension t:
4 mm
No Specifications
No Matching Products
Here you can find the product data sheets and CAD files of this product
